JPR-ST6020 JMP Marine Seawater Strainer - ST Series 2.5" NPT Ports
- $1,280.01
-
Regular price
$1,451.26 -
-11%
Couldn't load pickup availability

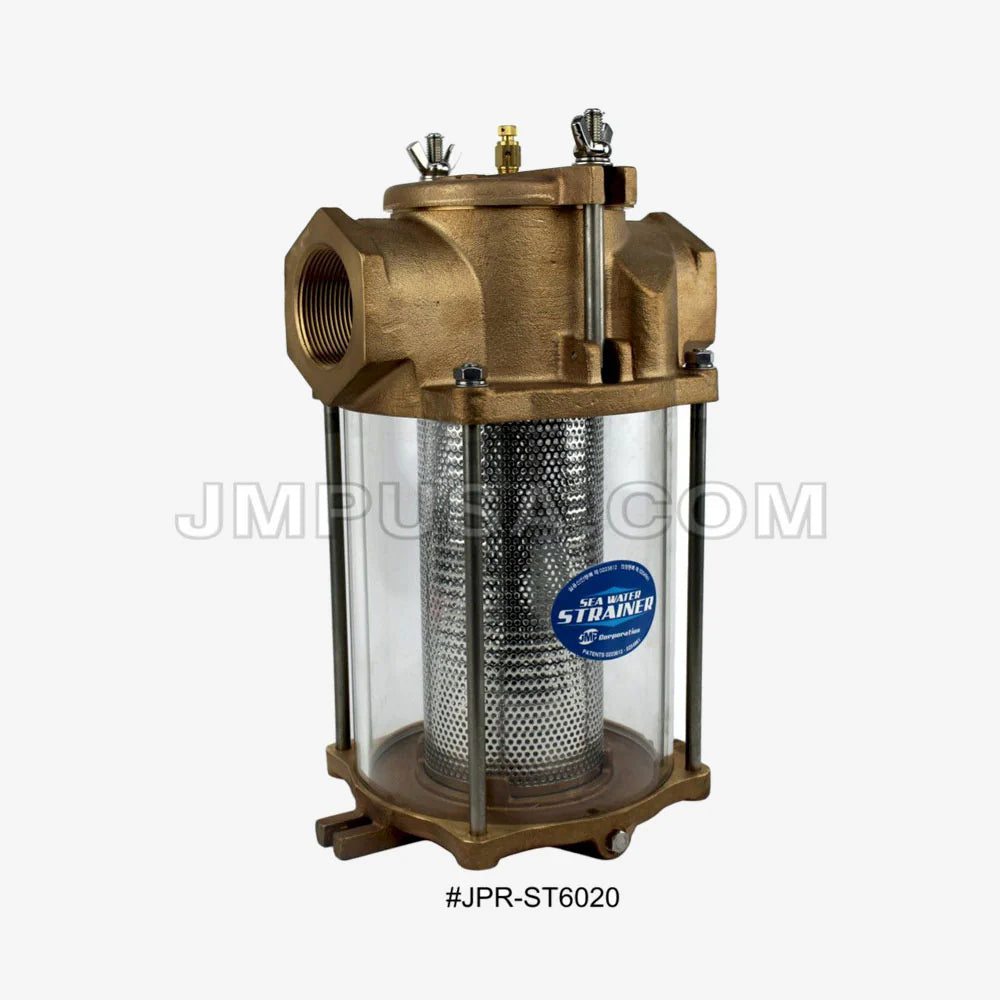

JPR-ST6020 JMP Marine Seawater Strainer - ST Series 2.5" NPT Ports
$1,280.01
The JPR-ST6020 JMP Marine Seawater Strainer from the ST Series is designed for heavy-duty marine applications, providing reliable filtration and superior protection for pumps and engines. With bronze casting and a stainless steel filter basket, it ensures durability and long-lasting performance. Its transparent cylinder allows quick inspection, while the O-ring seal guarantees dependable operation under high-pressure conditions. Easy to install and maintain, this strainer is an essential component for keeping debris out of your cooling systems.
SKU: JPR-ST6020
- Durable bronze top and bottom casting
- Stainless steel chrome-plated filter basket
- Transparent and strong cylinder for inspection
- O-rings provide secure sealing under high pressure
- Easy installation, cleaning, and maintenance
- Protects marine pumps and engines from damage
- Includes zinc bar, wingnut, center rods, and air cap
Product Information & Specs:
- Inlet / Outlet Port Size: 2.5" NPT Pipe
- Top Casting: Bronze
- Bottom Casting: Bronze
- Basket: Stainless Steel
- Basket Filter Replacement p/n: FIL000502 (2mm)
- Anode Replacement p/n: ZEN000101
- Seal: O-Ring
- Size (A × B × C): 260mm × 445mm × 275mm
- Cylinder (Dia × H): 210mm × 250mm
- Weight (Approx): 39.6 LBS / 18.0 KG
Performance Table – Flow Rate
| Bar | 500 rpm | 1000 rpm | 1800 rpm | 2000 rpm |
|---|---|---|---|---|
| 0 | 175 L/Min | 325 L/Min | 591 L/Min | 651 L/Min |
| 1 | 155 L/Min | 277 L/Min | 566 L/Min | 591 L/Min |
| 2 | 115 L/Min | 228 L/Min | 482 L/Min | 542 L/Min |
| 3 | 33 L/Min | 116 L/Min | 351 L/Min | 394 L/Min |
| Max | 3.2 bar | 3.6 bar | 4.2 bar | -- |
