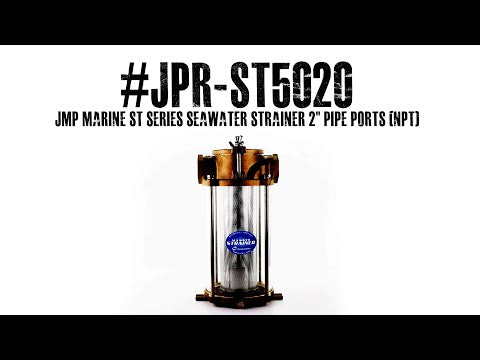

JPR-ST5020 JMP Marine Seawater Strainer - ST Series 2" NPT Ports

The JPR-ST5020 JMP Marine Seawater Strainer is part of the ST Series, designed for reliable filtration and superior protection of marine engines. Built with robust bronze casting and a stainless steel filter basket, it ensures durability and long service life. Its transparent cylinder allows for easy inspection, while the O-ring seal provides excellent performance under high pressure applications. Perfect for keeping debris out of your pumps and engines, this strainer is built for easy installation and maintenance.

SKU: JPR-ST5020

• Durable bronze top and bottom casting
• Stainless steel basket with chrome-plated filter
• Transparent cylinder for easy inspection
• O-rings for superior sealing under pressure
• Easy installation, cleaning, and maintenance
• Protects marine pumps and engines from debris
• Includes zinc bar, wingnut, center rods, and air cap

Product Information & Specs:

• Inlet / Outlet Port Size: 2" NPT Pipe
• Top Casting: Bronze
• Bottom Casting: Bronze
• Basket: Stainless Steel
• Basket Filter Replacement p/n: FIL000402 (2mm)
• Anode Replacement p/n: ZEN000101
• Seal: O-Ring
• Size (A × B × C): 210mm × 435mm × 235mm
• Cylinder (Dia × H): 180mm × 290mm
• Weight (Approx): 26.25 LBS / 12.0 KG

Performance Table – Flow Rate (820X, 830X Impellers)

Performance Table – Flow Rate (8400 Impellers)
